32 Cd Hazardous Area Obstruction lights
The Dialight L-810 Obstruction Light is an LED BASED Class 1, Division 2 certified fixture. Used for obstruction marking of structures in hazardous environments, providing a valuable solution to the petrochemical industry facilities.
Approvals
- FAA AC NO: (150/5345-43E)
- Compliant to Canadian Aviation Regulation (CAR 621.19)
- Compliant to ICAO (Annex 14, July 1999)
- UL Class 1, Div 2
Operating Conditions
- This Fixture is designed for severe duty conditions and hazardous environments.
- Temperatures ranging from -67°F to +131°F (-55°C to +55°C) will withstand wind in excess of 150 mph (240 kph),
- Salt Fog, high humidity
Materials
- Cast aluminum housing and
- stainless steel fixings
- Glass lens (not susceptible to UV degradation)
Photometric Data

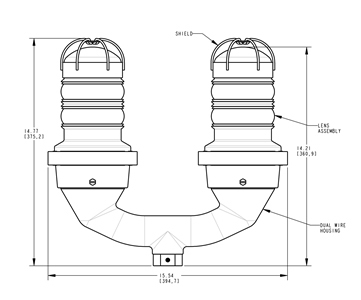

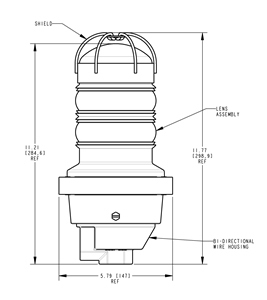

Mechanical Dimensions
Ordering Information
|
Single Unit
|
Double Unit
|
||
|
Part Number
|
Voltage
|
Part Number
|
Voltage
|
|
860-2R01-001
|
120 VAC
|
860-2R01-002
|
120 VAC
|
|
860-2R02-001
|
220 VAC
|
860-2R02-002
|
220 VAC
|
Weights & Measurements
|
PART NUMBER
|
APPROX SHIPPING WEIGHT
|
CONTAINER DIMENSIONS
|
|
Single Unit
|
3,25 Kg
|
406 x 229 x 203mm
|
|
Double Unit
|
7,3 Kg
|
559 x 432 x 229mm
|
Electrical Specifications
|
|
PF
|
VA
|
Operating Voltage
|
Watts(W)
|
Amps
|
||||
|
Min
|
Typ
|
Max
|
Min
|
Typ
|
Max
|
||||
|
120VAC UNITS
|
0,3
|
46,5
|
92
|
120
|
132
|
10
|
14,5
|
17,5
|
120 mA
|
|
220VAC (60Hz)
|
0,17
|
72
|
198
|
220
|
264
|
11
|
14,5
|
17,5
|
120 mA
|
|
220VAC (50Hz)
|
0,17
|
72
|
198
|
220
|
264
|
12
|
14,0
|
17,0
|
120 mA
|
»
